Examples on use inside RMS¶
RMS is a licensed proprietary modeling software developed by Emerson. From version 10 it has its own python engine integrated, and XTGeo is designed to work inside this environment. The integration will be continuously improved.
Hence XTGeo can read most datatypes that are exposed in RMS’ API (called ROXAPI), and then all native methods in XTGeo can be applied on those data. For example, if you want to write a surface from RMS to a format that ROXAPI does not support, but XTGeo supports, then it is quite easy. XTGeo can also read data from external files and store the data in the RMS data tree.
Note that all these script examples are assumed to be ran inside a python job within RMS.
Get and set data¶
In general, data are imported into XTGeo by a from_roxar()
or by a
xtgeo.xxx_from_roxar()
(where xx is “surface”, “grid”, etc). Then the
altered instance can be stored in roxar/RMS by a to_roxar()
method.
The to_roxar()
method will not do a project save when inside RMS or when inside
a virtual project setting. However, if a project is applied as a file path, then
to_roxar
will save implicitly. Examples:
Inside RMS GUI¶
import xtgeo
surf = xtgeo.surface_from_roxar(project, "TopReek", "DS_extracted")
surf.values += 100
surf.to_roxar(project)
# Note: project save needs to be done by user (GUI action)
Outside RMS, direct access¶
import xtgeo
myproject = "/some/file/path/reek.rms11.1.1"
surf = xtgeo.surface_from_roxar(myproject, "TopReek", "DS_extracted")
surf.values += 100
surf.to_roxar(myproject)
# Note: project save is done automatic
Outside RMS, project mode¶
import xtgeo
myproject = "/some/file/path/reek.rms11.1.1"
rox = xtgeo.RoxUtils(myproject)
surf = xtgeo.surface_from_roxar(rox.project, "TopReek", "DS_extracted")
surf.values += 100
surf.to_roxar(rox.project)
# Note: project save is not done automatic, you need to:
rox.project.save()
rox.project.close()
Surface data¶
Here are some simple examples on how to use XTGeo to interact with RMS data, and e.g. do quick exports to files.
Export a surface in RMS to irap binary format¶
import xtgeo
# import (transfer) data from RMS to XTGeo and export
surf = xtgeo.surface_from_roxar(project, "TopReek", "DS_extracted")
surf.to_file("topreek.gri")
# modify surface, add 1000 to all map nodes
surf.values += 1000
# store in RMS (category must exist)
surf.to_roxar(project, "TopReek", "DS_whatever")
Export a surface in RMS to zmap ascii format¶
Note here that an automatic resampling to a nonrotated regular grid will be done in case the RMS map has a rotation.
import xtgeo as xt
# surface names
hnames = ["TopReek", "MiddleReek", "LowerReek"]
# loop over stratigraphy
for name in hnames:
surf = xt.surface_from_roxar(project, name, "DS_extracted")
fname = name.lower() # lower case file name
surf.to_file(fname + ".zmap", fformat="zmap_ascii")
print("Export done")
Take a surface in RMS and multiply values with 2:¶
import xtgeo
surf = xtgeo.surface_from_roxar(project, "TopReek", "DS_tmp")
surf.values *= 2 # values is the masked 2D numpy array property
# store the surface back to RMS
surf.to_roxar(project, "TopReek", "DS_tmp")
Do operations on surfaces, also inside polygons:¶
Find the diff maps in time domain, of the main surfaces. Also make a a version where cut by polygons where surfaces has interp (minimum common multiplum)
import xtgeo
from fmu.config import utilities as ut
CFG = ut.yaml_load("../../fmuconfig/output/global_variables.yml")["rms"]
# ========= SETTINGS ===================================================================
PRJ = project # noqa
# input
TSCAT1 = "TS_interp_raw_ow"
PCAT = "TL_interp_raw_approx_outline"
# output
ISCAT1 = "IS_twt_main_interp_raw_ow"
ISCAT2 = "IS_twt_main_interp_raw_ow_cut"
# ========= END SETTINGS ===============================================================
def main():
topmainzones = CFG["horizons"]["TOP_MAINRES"]
mainzones = CFG["zones"]["MAIN_ZONES"]
for znum, mzone in enumerate(mainzones):
surf1 = xtgeo.surface_from_roxar(PRJ, topmainzones[znum], TSCAT1)
surf2 = xtgeo.surface_from_roxar(PRJ, topmainzones[znum + 1], TSCAT1)
diff = surf2.copy()
diff.values -= surf1.values
diff.to_roxar(PRJ, mzone, ISCAT1, stype="zones")
print("Store {} at {}".format(mzone, ISCAT1))
# extract differences inside a polygon and compute min/max values:
poly = xtgeo.polygons_from_roxar(PRJ, topmainzones[znum], PCAT)
surf1.eli_outside(poly)
surf2.eli_outside(poly)
diff2 = surf2.copy()
diff2.values -= surf1.values
print(
"Min and max values inside polygons {} : {} (negative OK) for {}".format(
diff2.values.min(), diff2.values.max(), mzone
)
)
diff2.to_roxar(PRJ, mzone, ISCAT2, stype="zones")
print("Store cut surface {} at {}".format(mzone, ISCAT2))
if __name__ == "__main__":
main()
print("Done, see <{}> and <{}>".format(ISCAT1, ISCAT2))
3D grid data¶
Exporting geometry to ROFF file¶
import xtgeo
# import (transfer) data from RMS to XTGeo and export
mygrid = xtgeo.grid_from_roxar(project, "Geomodel")
mygrid.to_file("topreek.roff") # roff binary is default format
Edit a porosity in a 3D grid¶
import xtgeo
# import (transfer) data from RMS to XTGeo
myporo = xtgeo.gridproperty_from_roxar(project, "Geomodel", "Por")
# now I want to limit porosity to 0.35 for values above 0.35:
myporo.values[myporo.values > 0.35] = 0.35
# store to another icon
poro.to_roxar(project, "Geomodel", "PorNew")
Edit a permeability given a porosity cutoff¶
import numpy as np
import xtgeo
myporo = xtgeo.gridproperty_from_roxar(project, "Geomodel", "Por")
myperm = xtgeo.gridproperty_from_roxar(project, "Geomodel", "Perm")
# if poro < 0.01 then perm is 0.001, otherwise keep as is, illustrated with np.where()
myperm.values = np.where(myporo.values < 0.1, 0.001, myperm.values)
# store to another icon
myperm.to_roxar(project, "Geomodel", "PermEdit")
Edit a 3D grid porosity inside polygons¶
# Example where I want to read a 3D grid porosity, and set value
# to 99 inside polygons
import xtgeo
mygrid = xtgeo.grid_from_roxar(project, "Reek_sim")
myprop = xtgeo.gridproperty_from_roxar(project, "Reek_sim", "PORO")
# read polygon(s), from Horizons, Faults, Zones or Clipboard
mypoly = xtgeo.polygons_from_roxar(project, "TopUpperReek", "DL_test")
# need to connect property to grid geometry when using polygons
myprop.geometry = mygrid
myprop.set_inside(mypoly, 99)
# Save in RMS as a new icon
myprop.to_roxar(project, "Reek_sim", "NEWPORO_setinside")
Make a hybrid grid¶

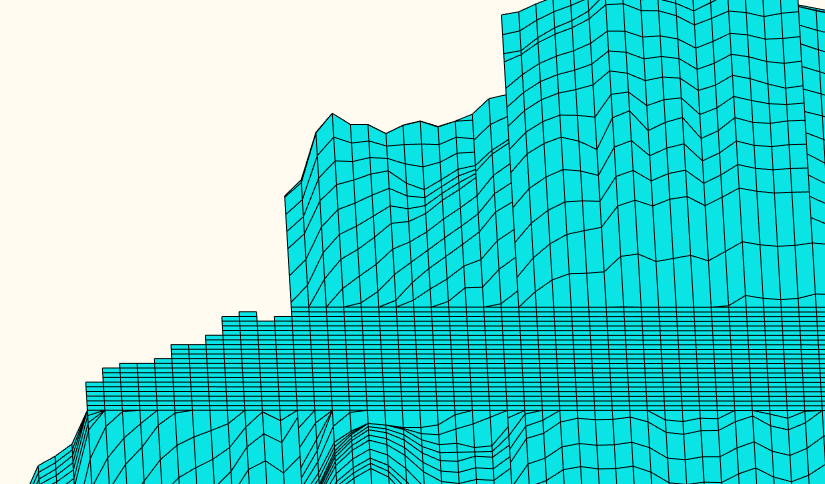

XTGeo can convert a conventional grid to a so-called hybrid-grid where a certain depth interval has horizontal layers.
import xtgeo
PRJ = project # noqa
GNAME_INPUT = "Mothergrid"
GNAME_HYBRID = "Simgrid"
REGNAME = "Region"
HREGNAME = "Hregion"
NHDIV = 22
REGNO = 1
TOP = 1536
BASE = 1580
def hregion():
"""Make a custom region property for hybrid grid"""
tgrid = xtgeo.grid_from_roxar(PRJ, GNAME_INPUT)
reg = xtgeo.gridproperty_from_roxar(PRJ, GNAME_INPUT, REGNAME)
reg.values[:, :, :] = 1
reg.values[:, 193:, :] = 0 # remember 0 base in NP arrays
reg.to_roxar(PRJ, GNAME_INPUT, HREGNAME) # store for info/check
return tgrid, reg
def make_hybrid(grd, reg):
"""Convert to hybrid and store in RMS project"""
grd.convert_to_hybrid(nhdiv=NHDIV, toplevel=TOP, bottomlevel=BASE, region=reg,
region_number=1)
grd.inactivate_by_dz(0.001)
grd.to_roxar(PRJ, GNAME_HYBRID)
if __name__ == "__main__":
print("Make hybrid...")
grd, reg = hregion()
make_hybrid(grd, reg)
print("Make hybrid... done!")
Well data¶
Get average properties per zone¶
import xtgeo
PRJ = project # noqa
WELLNAME = "DC1-1V4_ref"
TRAJNAME = "Imported trajectory"
ZONELOGNAME = "ZONELOG"
ZNAMES = {0: "UPPER", 1: "MIDDLE", 2: "LOWER"}
def get_well():
"""Get XTGeo Well() object"""
wll = xtgeo.well_from_roxar(PRJ, WELLNAME, trajectory=TRAJNAME)
return wll
def compute_avg_per_zone(wll):
"""Compute avg per zone without any other criteria"""
df = wll.dataframe
df_avgs = df.groupby(ZONELOGNAME).mean()
df_avgs.rename(index=ZNAMES, inplace=True) # rename zonelog numbers with true name
print("Average properties per zone")
print(df_avgs)
# e.g. get avg PORO for MIDDLE, rounded to 3 decimals:
print("\nAVG poro for MIDDLE is {:2.3f}\n".format(df_avgs.loc["MIDDLE", "PORO"]))
def compute_avg_per_zone_smarter(wll):
"""Compute avg per zone by looking only at intervals that increase"""
wll.zonelogname = ZONELOGNAME
wll.make_zone_qual_log("QUAL")
# This quality log will be 1 if zonelog is truly increasing, or 2 if truly
# decreasing, so here I will only here filter on increasing (downward)
# cf: https://xtgeo.readthedocs.io/en/latest/apiref/xtgeo.well.well1.html#
# xtgeo.well.well1.Well.make_zone_qual_log
df = wll.dataframe[wll.dataframe.QUAL == 1] # only get the increasing part
df_avgs = df.groupby(ZONELOGNAME).mean()
df_avgs.rename(index=ZNAMES, inplace=True) # rename zonelog numbers with name
print("\n\nAverage properties per zone where penetrating zone downwards")
print(df_avgs)
def main():
mywell = get_well()
compute_avg_per_zone(mywell)
compute_avg_per_zone_smarter(mywell)
if __name__ == "__main__":
main()
Filter logs on facies/zone boundaries¶
Petrophysical property modelling can be more precise if so-called shoulder effects are filtered. Here is a small example on how to do this:
import xtgeo
PRJ = project
TRAJNAME = "Drilled trajectory"
LRUNNAME = "log"
ZONELOGNAME = "Zone"
FACIESLOGNAME = "Facies"
INLOGS = [ZONELOGNAME, FACIESLOGNAME]
PETROLOGS = {"KLOGH": "KLOGH_orig", "PHIT": "PHIT_orig", "Sw": "Sw_orig"}
FILTER: {"tvd": 1.5} # filter 1.5m below and above boundary in TVD
def filter_shoulder():
"""Filter should bed data."""
for rms_well in PRJ.wells:
wll = xtgeo.well_from_roxar(
PRJ, rms_well.name, trajectory=TRAJNAME, logrun=LRUNNAME
) # wll is a xtgeo Well() object
# skip wells without facies
if FACIESLOGNAME not in wll.dataframe or not rms_well.name.startswith("55"):
continue
print("Use: ", rms_well.name)
# keep the original logs and work on copy:
for target, orig in PETROLOGS.items():
if target in wll.dataframe.columns:
if orig not in wll.dataframe.columns:
# first time; create an "_orig" column
print("Create", orig)
wll.create_log(orig)
wll.dataframe[orig] = wll.dataframe[target].copy()
wll.dataframe[target] = wll.dataframe[orig].copy()
uselogs = list(PETROLOGS.keys())
wll.mask_shoulderbeds(inputlogs=INLOGS, targetlogs=uselogs, nsamples=2)
wll.to_roxar(PRJ, rms_well.name, trajectory=TRAJNAME, logrun=LRUNNAME)
- if __name__ == “__main__”:
filter_shoulder()
Blocked well data¶
Remember that RMS define blocked wells as a special grid property while XTGeo treats blocked wells as a subclass of Well() data.
Make new blocked logs from facies¶
In the following example, the blocked facies is used to make new logs that will be input to Equinor’s APS module.
import numpy as np
import xtgeo
PRJ = project # noqa pylint: disable=undefined-variable
GNAME = "Geogrid_Valysar"
BWNAME = "BW"
FACIES = "Facies"
APS_FACIES = {0: "Floodplain", 1: "Channel", 2: "Crevasse", 5: "Coal"}
PREFIX = "aps_"
# note it is possible to "play with" probabilities that are not just 0 or 1
MINPROB = 0.0
MAXPROB = 1.0
def main():
"""Main work, looping wells and make APS relevant logs"""
for well in PRJ.wells:
blw = xtgeo.blockedwell_from_roxar(
PRJ, GNAME, BWNAME, well.name, lognames=[FACIES]
)
dfr = blw.dataframe.copy(deep=True)
for code, faciesname in APS_FACIES.items():
newname = PREFIX + faciesname
dfr[newname] = MINPROB
dfr[newname][dfr[FACIES] == code] = MAXPROB
# if facies is undefined, also probability shall be undefined
dfr[newname][np.isnan(dfr[FACIES])] = np.nan
blw.dataframe = dfr
blw.to_roxar(PRJ, GNAME, BWNAME, well.name)
if __name__ == "__main__":
main()
Line point data¶
Examples to come…
